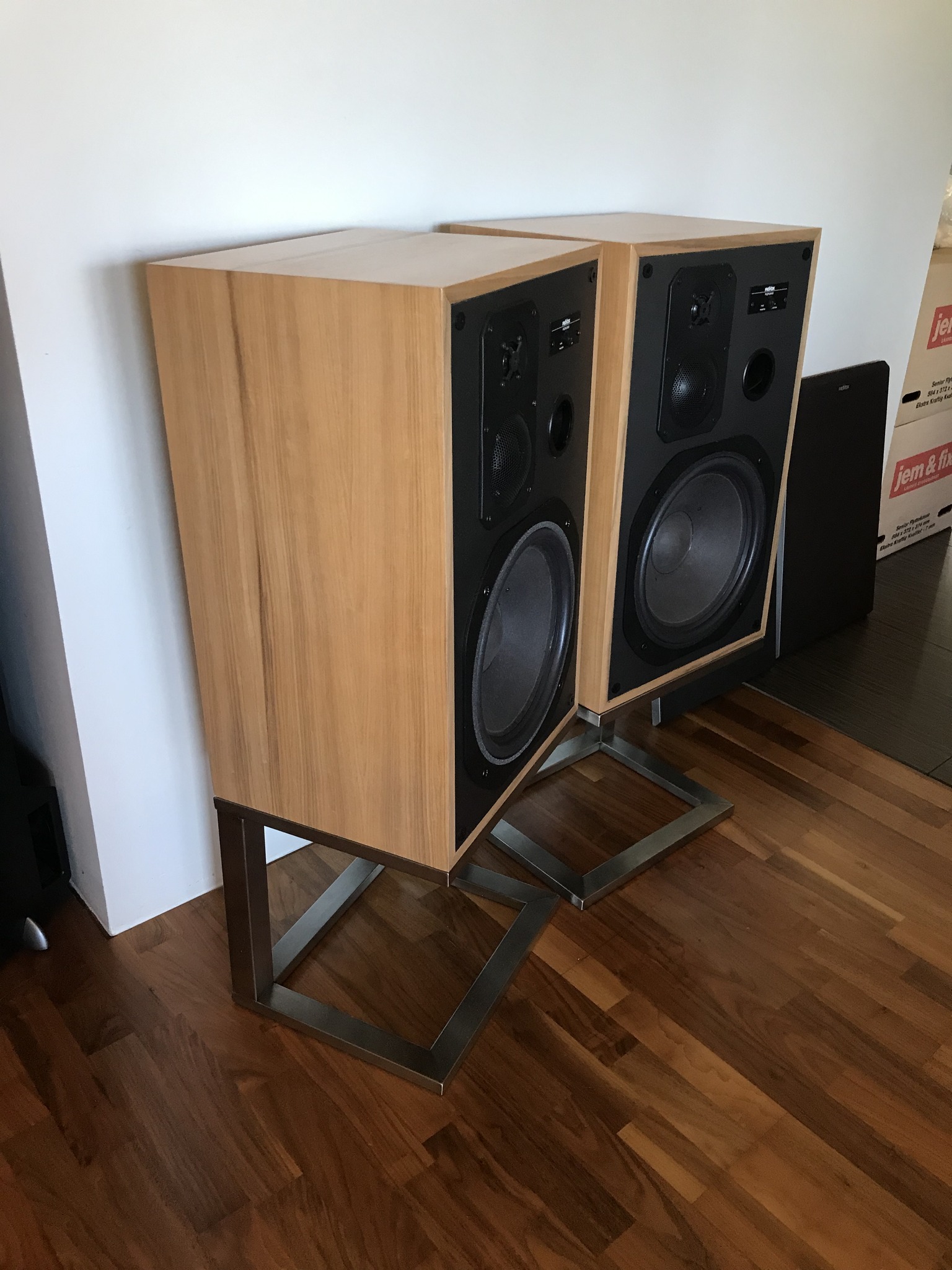

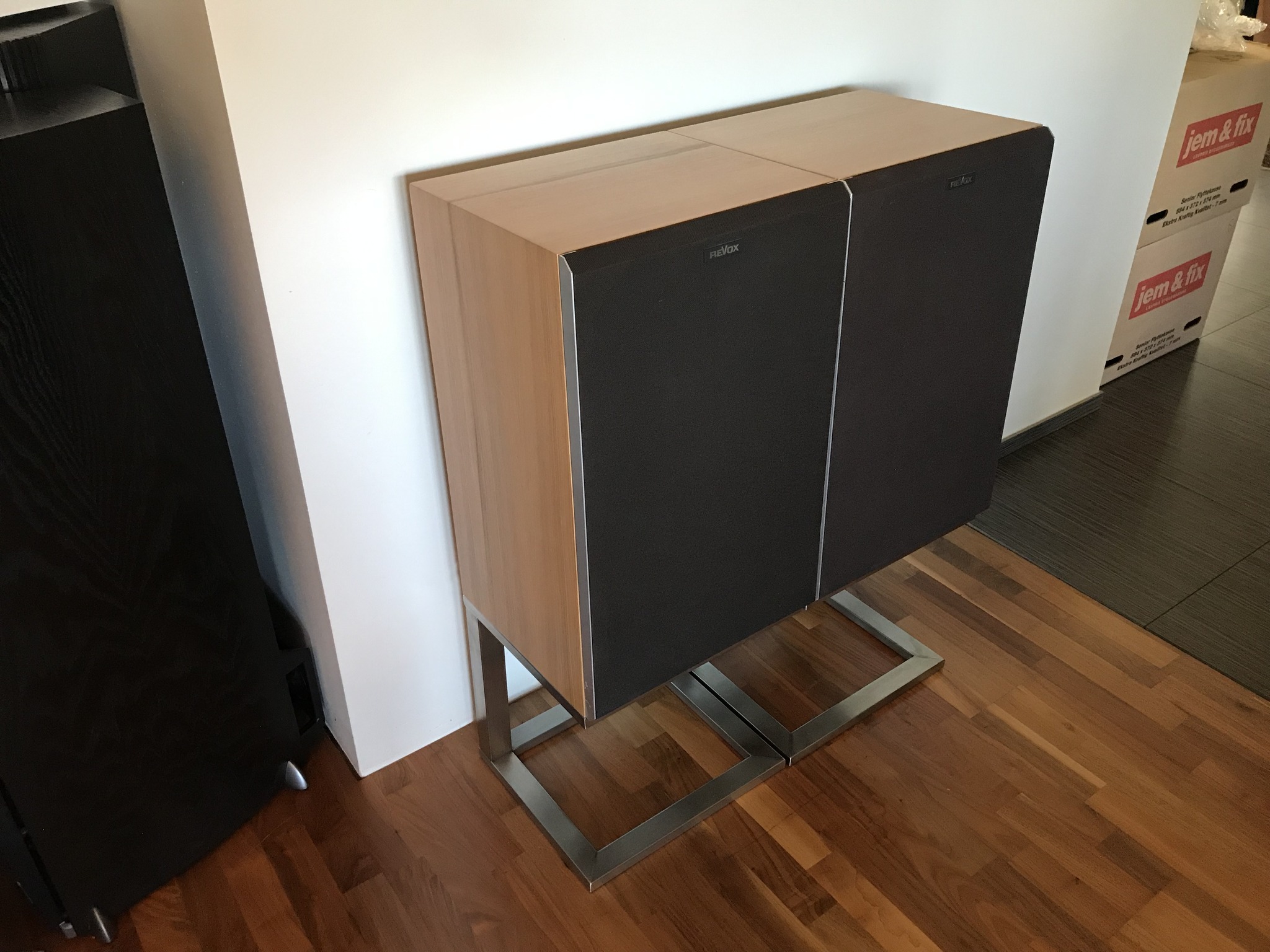

REVOX – Plenum B + Stands

Suurepärases seisukorras.
Veatud välispinnad.
Korpused, elemendid ja katted on terved.
Korpused kaetud naturaalse spooniga (Hele pähkel).
Haruldased ja väga hea helipildiga kõlarid koos jalgadega.
Studer-i elemendid.
RMS 120w / Peak 150w.
Sensitivity 97db.
Made in Germany 1983 – 1986
Color: real wood veneer walnut, dark stained
Dimensions: 385 x 610 x 345 mm (WxHxD)
Weight: 22 kg
Original price approx.: 1’100 DM

Type: 3-way, 3 speakers
Bass: 315 mm cone (Studer)
Midrange: 50 mm dome tweeter
Tweeter: 25 mm dome tweeter

Power handling (nominal/music): 120 W / 150 W
Recommended amplifier power: 20 – 100 Watt (sine per channel)
Distortion factor: 0.5
Frequency response: 33 Hz – 22 kHz
Transitional ranges: 720 Hz, 2’500 Hz
Impedance: 4 Ohm

Level control Mid Level at 1kHz: 14/18 dB/oct.
Level control High Level at 10kHz: 24/28 dB/Okt.
Overload protection: Overload protection of the tweeter system by fuse
